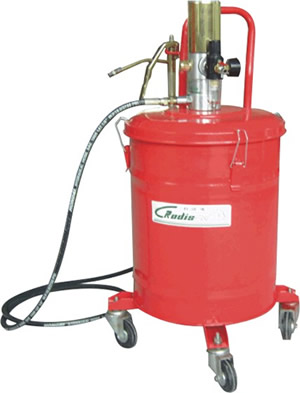

K55 Pneumatic Grease Pump







Description

It is a mobile grease pump which can install on a trolley. And it is suitable for 10-30kg barreled oil, you can put the oil with the drum into it. Also we can pure the bulk oil into it directly.

NOTE:

We should fit out the 60:1 pneumatic pump, the 4m hose, and the turnable grease gun. It is an air supply device and controlled by pneumatic component which is steady, effective and widely supplied.

Techniques

Tank capacity:   40L
Pump raito:   60:1
Delivery:   500-900g/min

Hose:   4m
Air pressure:   4-8Kg/cm2
Delivery pressure:
480 Kg/cm2
Net weight:
21.0 Kgs
Gross weight
:   23.5 Kgs


Applications

1 , it can be applied to bulk grease or 12-30L(under25L)Barreled oil;

2 , it can delivery the  0#~3#grease fluently;

3 , there is a follower plate which can be applied to a standared drum, if there is an anomalistic one you should illuminate other way.

It can be applied to industries like the gas station, the working line, the paper making, eletricity, electron, port, construction machine, automobile, etc, is a perfect device for developing the machine's quality.

Example
Buying direction

It will be better to choose an exellent injector according to the viscosity and the article of the grease and the diameter of the drum. It can help you save your grease consumption also let the pump be more effective.
